Harvia Virta Combi 10.5kW Electric Sauna Heater & Steamer | HL110SA
Floor-standing Harvia Virta Combi 10.5 kW electric sauna heater with built-in steamer for 177–635 cu ft rooms; needs a separate Harvia Combi control
In stock
Estimated delivery
7–12 days after you order
In stock
Estimated delivery
7–12 days after you order
- Built-in 2.1 kW steamer with a 1.3 gal tank, about 2 hours of steam
- Holds up to 154 lb of stones
- Runs from a Harvia Xenio Combi or Fenix Combi control, sold separately
- Description
- Specifications
- Installation
- What's Included
- Documents
- Warranty
What is the Harvia Virta Combi 10.5 kW electric sauna heater and steamer (HL110SA)?
The Harvia Virta Combi 10.5 kW (HL110SA, Harvia item HL11U1SAUL / HL11U3SAUL) is a floor-standing electric sauna heater with a built-in 2.1 kW steamer, in a black-painted steel casing, for sauna rooms of 177–635 cu ft. It heats the sauna the usual way or with its steamer, whose 1.3 gal (5 L) tank gives about 2 hours of steam, and liquid fragrances or fragrance bags can be used in the steamer. It runs on 240 V single-phase power on two supply circuits or, as the HL11U3SAUL, 208 V three-phase, holds up to 154 lb (70 kg) of stones, and needs a separate Harvia Combi control.
Which control does the Harvia Virta Combi 10.5 kW need?

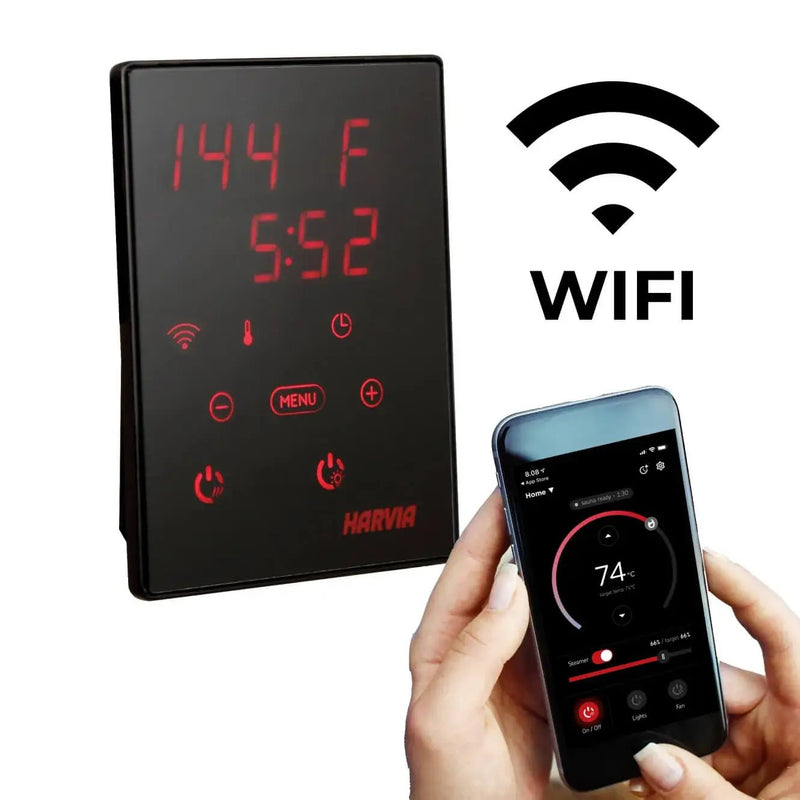

The Harvia Virta Combi 10.5 kW needs a Harvia Combi control, which runs the heater and the steamer: a plain Xenio or Fenix cannot run the steamer. The 240 V model takes the Harvia Xenio Combi CX30C-U1-XW or the Harvia Fenix Combi FX30C-U1-XC, and the 208 V three-phase model the Harvia Xenio Combi CX30C-U3-XW or the Harvia Fenix Combi FX30C-U3-XC, all sold separately. The Xenio Combi can be set from 104 to 194°F (40–90°C) and from 20 to 80% humidity; it runs the heater for up to 1 hour per start and can delay a start by up to 12 hours, and the CX30C-U1-XW has Wi-Fi for Harvia's MyHarvia app.
Harvia Virta Combi 10.5 kW key features
- 10.5 kW for sauna rooms of 177–635 cu ft (5–18 m³)
- Built-in steamer: 2.1 kW, with a 1.3 gal (5 L) water tank for about 2 hours of steam
- Up to 154 lb (70 kg) of stones
- Floor-standing on adjustable legs, in a black-painted steel casing
- 240 V single-phase on two supply circuits, or 208 V three-phase
- Runs from a Harvia Xenio Combi or Fenix Combi control, sold separately
- ETL Listed; conforms to UL 875
The Virta Combi also comes in 8 kW and 9 kW, and the plain Virta 10.5 kW has the same output without the steamer. The Virta Combi 10.5 kW package includes the Xenio Combi control and the stones. The Harvia Virta collection has every Virta heater and package.
Does the Harvia Virta Combi 10.5 kW fit my sauna?
The Harvia Virta Combi 10.5 kW heats sauna rooms of 177–635 cu ft (5–18 m³) with 28–102 sq ft of floor, according to Harvia's Virta Combi manual 26092023/Y05-0898. Harvia's sizing rule adds 1.2 m³ for every square meter of uninsulated brick, glass block, glass, concrete or tile wall, about 3.9 cu ft per sq ft, and a glass door counts: Harvia's example is a 10 m³ room with a glass door, which needs the output of a 12 m³ room. The Virta manual multiplies the volume of a log sauna by 1.5.
Harvia Virta Combi 10.5 kW specifications
| Output | 10.5 kW heater plus a 2.1 kW steamer |
|---|---|
| Sauna room volume | 177–635 cu ft (5–18 m³); floor area 28–102 sq ft |
| Sauna room height | At least 75" (1,900 mm); ceiling no higher than 7 ft 6 in (2,300 mm) |
| Power supply | 240 V single-phase (HL11U1SAUL) on two supply circuits: 29.2 A per circuit. 208 V three-phase (HL11U3SAUL): 29.2 A |
| Supply wire, power unit to heater (Harvia manual) | 10 AWG (minimum; 90°C copper) |
| Control | 240 V: Harvia Xenio Combi CX30C-U1-XW or Fenix Combi FX30C-U1-XC; 208 V three-phase: Xenio Combi CX30C-U3-XW or Fenix Combi FX30C-U3-XC. Sold separately; required. A plain Xenio or Fenix cannot run the steamer |
| Temperature setting | Set on the control, 104–194°F (40–90°C) |
| Heat-up time | About an hour for a properly insulated sauna with a correctly sized heater (Virta Combi manual) |
| Steamer | 2.1 kW; up to 2.5 kg (about 0.66 US gal) of water vaporized an hour |
| Water tank | 1.3 gal (5 L), about 2 hours of continuous steam; filled automatically from a cold-water line or by hand |
| Dimensions | 16" W × 19" D × 33" H (415 × 485 × 840 mm) |
| Net weight | 70.5 lb (32 kg) without stones |
| Stones | Up to 154 lb (70 kg); four 44 lb (20 kg) boxes. Sold separately |
| Mounting | Floor-standing on adjustable legs |
| Materials | Black-painted steel casing |
| Certification | ETL Listed; conforms to UL 875 |
| Harvia part number | HL11U1SAUL / HL11U3SAUL (HL110SA) |
| Warranty | 2-year manufacturer warranty; Harvia adds a third year when the heater is registered on harvia.com within 30 days of purchase; stones are not covered |
How is the Harvia Virta Combi 10.5 kW installed?
The Harvia Virta Combi 10.5 kW stands on the sauna floor on adjustable legs, which level it. Harvia's manual asks for a heat-resistant floor covering where the heater stands, because hot pieces of stone can damage floor coverings. Harvia allows one electric heater per sauna room unless several heaters share one control unit. The heater is hardwired: Harvia's manual allows no plug or receptacle in the sauna room, and only an authorized, licensed electrician may connect it. The control's power unit goes on a wall outside the sauna room, in a dry place above 32°F (0°C), and the WX248 temperature sensor that comes with the heater mounts above it. Your licensed electrician sizes the breaker and wire from the manual that ships with the heater and your local code. Harvia's installation manual, under Documents, gives the exact sensor, wiring and vent positions.
Harvia Virta Combi 10.5 kW safety distances
Keep at least these distances between the Harvia Virta Combi 10.5 kW and walls, benches and anything that can burn.
| Heater to side walls, back wall and benches | 2" (50 mm) |
|---|---|
| Top of the heater to the ceiling | 42" (1,060 mm) |
| Heater fence (required, not in the box) | Harvia's manual calls a softwood heater fence necessary for safety: at least 2" (50 mm) from the heater on every side and at least 28" (711 mm) high, with its top at least 1" below the top of the heater and never above the rock line |
| Sauna room height | At least 75" (1,900 mm); ceiling no higher than 7 ft 6 in (2,300 mm) |
Does the sauna room need ventilation?
Yes. Harvia's Virta Combi manual calls for adjustable vents that change the air five times an hour: a supply vent low down beside the heater and an exhaust vent on the opposite wall. The manual gives their positions.
Does the Harvia Virta Combi 10.5 kW need a water line?
Only for automatic filling. The Harvia Virta Combi 10.5 kW's steamer can fill its 1.3 gal (5 L) tank automatically from a cold-water supply line with a shut-off valve and a vacuum breaker, at 22–58 psi (150–400 kPa), and Harvia recommends a floor drain. Without a water line, the tank is filled by hand, after a jumper in the heater is removed.
What's in the box with the Harvia Virta Combi 10.5 kW?
- Harvia Virta Combi 10.5 kW electric sauna heater with built-in steamer and 1.3 gal (5 L) water tank (HL11U1SAUL for 240 V or HL11U3SAUL for 208 V three-phase, by the option you choose)
- WX248 temperature sensor
- Fastening kit
- Two metal signs: "CAUTION" for the wall above the heater and "WARNING" for the sauna door
- Installation and user manual
What you need separately
- A Harvia Combi control (required): for 240 V the Harvia Xenio Combi CX30C-U1-XW or the Harvia Fenix Combi FX30C-U1-XC; for 208 V three-phase the Harvia Xenio Combi CX30C-U3-XW or the Harvia Fenix Combi FX30C-U3-XC
- Four 44 lb (20 kg) boxes of sauna stones; the heater holds up to 154 lb (70 kg)
- The circuit and wiring, installed by a licensed electrician
- A heater fence around the heater, which Harvia's manual requires (see the safety distances)
- For automatic water filling: a cold-water supply line with a shut-off valve and a vacuum breaker

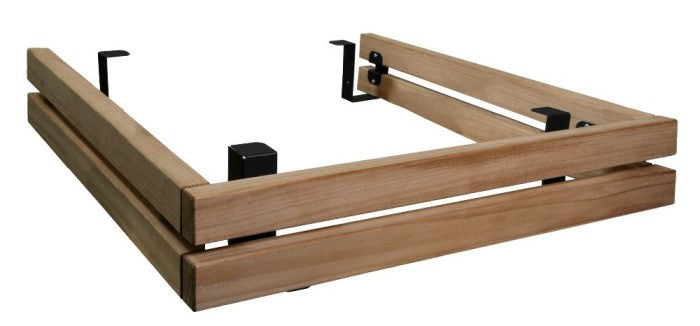

- Optional: the Harvia HL3L safety rail, which screws to the top of the heater casing
To buy the heater, the Xenio Combi control and the stones in one order, see the Virta Combi 10.5 kW package.
